WOLFBOX 4A USB-C Hardwire Kit
Compatible WOLFBOX models
WOLFBOX lists its USB-C cameras including the G900 Pro, G900 Core, G900 Tripro, G850 Pro, G840H, G840S, G930, i07, i17, X5 and X3. It powers the main unit only.
Quick specs
- 5V/4A USB-C output — enough headroom for typical mirror dash cam draw.
- Fixed low-voltage cut-off — 11.8V on 12V systems, 22.8V on 24V.
- Ignition and parking power — ACC lead for on/off with the ignition, battery lead for parking monitoring.
- No-cut fuse panel connection — add-a-circuit blade fuse taps keep the install reversible.
- 11.48 ft total cable — measure your routing path before fitting.
Why it stands out
What's in the box
WOLFBOX’s mirror dash cams draw more power than a small windscreen camera, and this 4A kit is made for them. It powers the main unit from the fuse box for parking monitoring, with a fixed 11.8V cut-off.
Which dashcams it fits
WOLFBOX lists the kit for its USB-C dash cams, including the G900 Pro, G900 Core, G900 Tripro, G850 Pro, G840H, G840S, G930, i07, i17, X5 and X3. On Dashcams.ae we pair it with the models below. It powers the main unit only; rear cameras connect to the main unit as usual.
WOLFBOX X5 Duo 2 Channel 4K Dashcam
WOLFBOX G900 Tripro 3 Channel 4K Mirror Dashcam
WOLFBOX i07 3 Channel 4K Dashcam
WOLFBOX G900 Pro 4K Mirror Dashcam
WOLFBOX G840S 4K Mirror Dashcam5 dashcams on Dashcams.ae list this as a matching accessory.
How the WOLFBOX kit powers parking mode

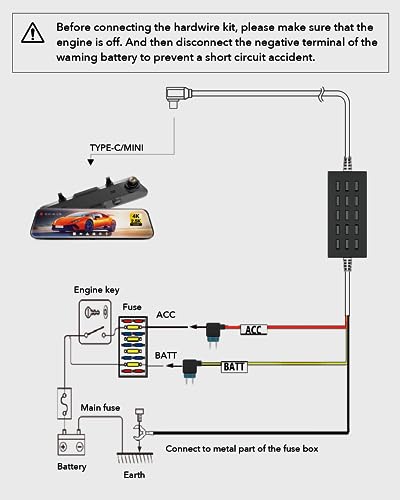

Connect the ACC lead to a switched fuse so the camera turns on and off with the ignition, and the battery lead to a constant fuse for parking monitoring. The kit converts 12V to 24V vehicle power into a steady 5V/4A over USB-C.
It replaces the 12V socket adapter, so no cable hangs down from your dashboard.
- Input
- 12V to 24V
- Output
- USB-C, 5V/4A
- Cut-off
- 11.8V (12V) / 22.8V (24V), fixed
- Cable
- 11.48 ft total
Low-voltage protection and the UAE summer

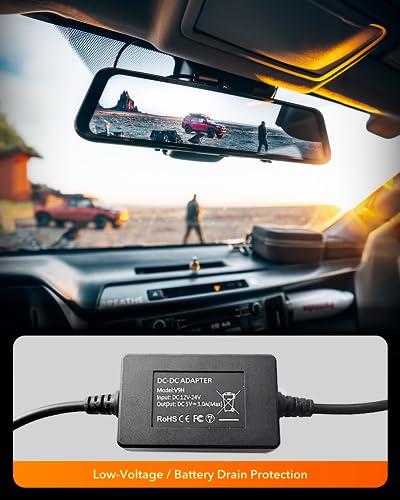

The inline control box cuts power at 11.8V on 12V systems or 22.8V on 24V systems. WOLFBOX says the threshold is factory-set and cannot be adjusted.
If the car will sit unused for several days, WOLFBOX recommends switching parking mode off in the camera menu.
Installation
Check your fuse box first: WOLFBOX notes that three-pin and cartridge-type fuses are not supported, some vehicles have no switched ACC at the panel, and tapping an empty slot needs a matching blade fuse. Measure your routing path, as the total cable length is 11.48 ft.
If you are not comfortable at the fuse box, a dash cam installer can fit it.
- The WOLFBOX 4A kit kit
- Fuse taps that match your fuse box (included)
- A trim tool to tuck the cable behind the headliner and A-pillar
Pros, cons & verdict
Pros
- 5V/4A output for mirror cams
- Fixed 11.8V battery protection
- Reversible add-a-circuit install
- Works on 12V and 24V vehicles
Cons
- Cut-off is not adjustable
- Not for three-pin or cartridge fuses
Our verdict
A 4A kit with the headroom WOLFBOX mirror dash cams need
It powers every WOLFBOX camera we list, installs without cutting wires and protects the battery at 11.8V. The cut-off is not adjustable, so switch parking mode off before leaving the car for days.
Who should buy it
Specifications
| Brand | WOLFBOX |
|---|---|
| Model | 4A01 |
| Output | USB-C, 5V/4A |
| Input | 12V to 24V |
| Low-voltage cut-off | 11.8V (12V) / 22.8V (24V), not adjustable |
| Leads | ACC (switched) and battery (constant) |
| Cable length | 11.48 ft total |
| Fuse taps | Add-a-circuit blade fuse taps |
| Listed compatibility | G900 Pro, G900 Core, G900 Tripro, G850 Pro, G840H, G840S, G930, i07, i17, X5, X3 |
FAQ
Can I change the cut-off voltage?
Does it power the rear camera?
Can I fit it myself?
Specification: WOLFBOX 4A USB-C Hardwire Kit
|
